Panels

Silent Knight 5820XL-EVS, 5820XL, Bosch FPA-1000, D9124 , D7024 ,SENSORS & SOUNDERS

The 5820XL-EVS is an intelligent addressable fire alarm control panel combined with an Emergency Voice System (EVS).  When the EVS features are enable, they are integrated with the fire alarm and voice evacuation functions of the control panel.  The 5820XL-EVS panel and accessories provide features to meet the requirements for Mass Notification Systems as described in UL 2572.

The basic 5820XL-EVS system cab be expanded by adding modules such as 5860 remote annunciator, 5815XL signaling line circuit expander, 5824 serial/parallel printer interface module (for printing systems reports), and 5895XL intelligent power module, 5820XL-EVS supports SD or SK devices.

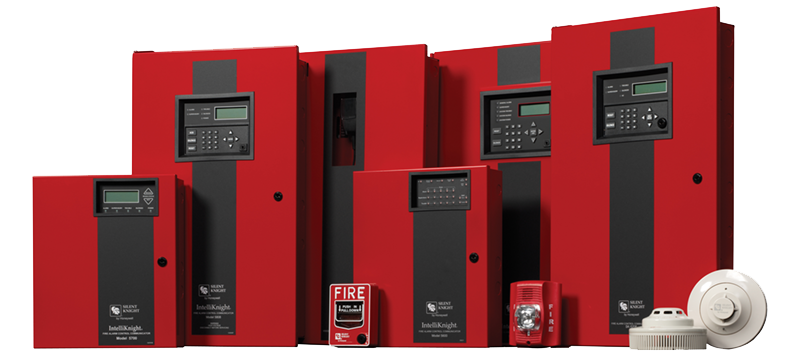

The Silent Knight 5820XL, has modular design features and an easy-to-use interface that simplifies installation procedures. Plus, this incredibly smart system can differentiate between smoke and dust particles. With IntelliKnight, you’ll be notified if you need the fire department or just a maintenance crew. And you’ll know exactly where to find the problem.

The lntelliknight system uses data from the sensors installed on the signaling line circuits (SLC) to set sensitivity levels for each of the zones in the system. In addition, the Model 5820XL uses the data to perform drift compensation and sensitivity checks on each of the sensors in the system.  The model 5820XL also features a powerful built-in dual line fire communicator that allows for reporting of all system activity to a remote monitoring location.

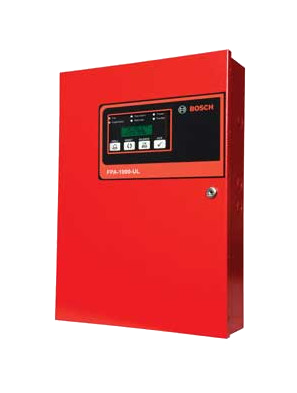

The FPA‑1000‑UL Compact Fire Panel is an advanced analog control panel for small to medium facilities in commercial or public building applications. The FPA‑1000‑UL combines complete built-in Fire Alarm Control Panel (FACP) equipment such as Notification Appliance Circuits (NACs), Signaling Line Circuits (SLCs), relays, power supply, Digital Alarm Communicator Transmitter (DACT), and Ethernet.

Includes one FPE‑1000‑SLC Signaling Line Circuit, configurable as two Class B  Style 4 or one Class A  Style 6  or  7
Expandable by adding a second FPE‑1000‑SLC Signaling Line Circuit
Up to 127 detectors and modules, plus 127 analog sounder bases in combination with a suitable detector.
Two integrated NAC circuits rated at 2.5 A each (unsynchronized), allowing up to 4 A total current (including NAC, Option Bus and Aux power)

The FPA‑1000‑UL

Compact Fire Panel is an advanced analog control panel for small to medium facilities in commercial or public building applications. The FPA‑1000‑UL combines complete built-in Fire Alarm Control Panel (FACP) equipment such as Notification Appliance Circuits (NACs), Signaling Line Circuits (SLCs), relays, power supply, Digital Alarm Communicator Transmitter (DACT), and Ethernet.

• Includes one FPE‑1000‑SLC Signaling Line Circuit, configurable as two Class B  Style 4 or one Class A  Style 6  or  7
• Expandable by adding a second FPE‑1000‑SLC Signaling Line Circuit
• Up to 127 detectors and modules, plus 127 analog sounder bases in combination with a suitable detector.
• Two integrated NAC circuits rated at 2.5 A each (unsynchronized), allowing up to 4 A total current (including NAC, Option Bus and Aux power)

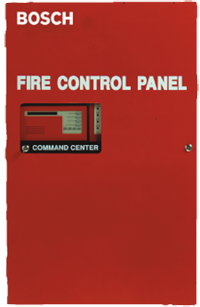

The Bosch D9124

Addressable Fire Alarm Control/Communicator provides detailed point identification through integrated addressable devices. Accurate information from individual points is communicated to the Central Station Monitoring facility.

The detailed reporting capability of the D9124 provides a solution to system service and maintenance problems. The silencing of a “troubled” condition is a common occurrence with fire alarm systems. Using the D9124, your maintenance person won’t be able to silence a “trouble” condition and forget about it. The location and time of the “trouble” will be reported to the central station and the required action can be taken. The base D9124 system configuration supports 127 points of detection or supervision. Optional accessory modules expand the system’s capability, with up to 2,400 detection devices utilizing up to 246 individual reporting addresses.

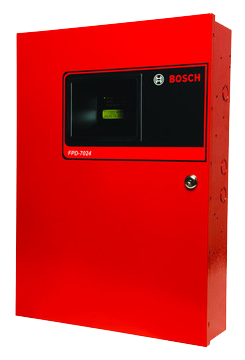

FPD‑7024

Fire Alarm Control Panels (FACPs) can be used in commercial and public building applications such as schools, universities, manufacturing plants, and health care facilities. They are listed by UL for central station, local, auxiliary, and remote station systems. The FPD‑7024 FACPs support four on‑board initiating zones that can be expanded to eight using the FPC-7034. The Bosch FPD-7024 is a Microprocessor-based Fire Alarm Addressable Control/Communicator Panel. This four zone, expandable to eight zones in conventional mode, panel supports up to 20 conventional detectors per zone for a total of 160 detectors. Two Notification Appliance Circuits provide up to 2.5 amps of 24 volt power to operate horns, strobes, bells and other notification Appliances. Additional system power can be added using the D7038 Addressable Notification Power Supply, and can be expanded to two hundred and forty seven zones in addressable mode. The system has restricted access function keys to allow silencing of alarm and trouble conditions, zone bypassing, detector resetting, testing and other fire functions.

• Digital Fire Alarm Addressable Control/ Communicator Transmitter, expandable to 247 addresses with D7039
• Supports conventional type detectors
• Provided with 4 zones, expandable to 8
• Two notification appliance circuits
• Internal 24 volt, 4 amp power supply
• Supports 4 remote Fire Command Centers
• Built-in front panel display with controls
• On-board programming capabilities
• Remote programmable over dial up phone line
• Event Activity Logger
• Specialized fire software features
• UL listed
